Esitystekniikka

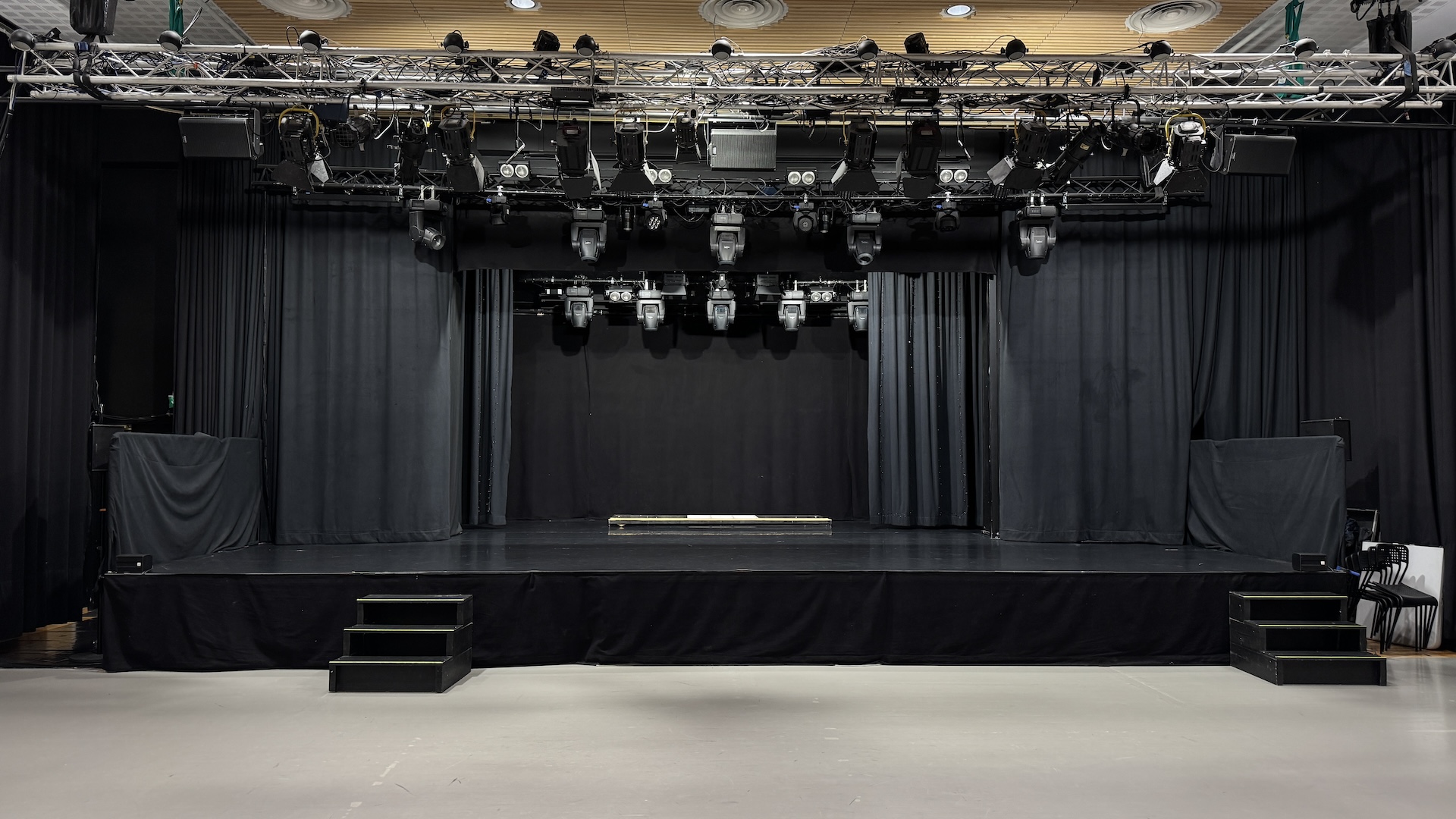

Kurkimäen korttelitalo venue has adequate audio & lighting systems for most appications like concerts and theater use.

For more information please contact:

• Niklas Nyström, 0503434678, niklas@korttelitalo.com

Mixer Front of the House

FOH mixer Behringer X32 digital mixer
- 40-Input, 25-Bus Digital Mixing Console with 32 Programmable MIDAS Preamps, 25 Motorized Faders, Channel LCD's, 32-Channel Audio Interface and iPad/iPhone Remote Control

2 x Stagebox Behringer S16, 16 inputs, 8 outputs
- I/O Box with 16 Remote-Controllable Midas Preamps, 8 Outputs and AES50 Networking featuring Klark Teknik SuperMAC Technology

Also available

Behringer X AIR XR18
- 18-Channel, 12-Bus Digital Mixer for iPad/Android Tablets with 16 Programmable Midas Preamps, Integrated WiFi Module and Multi-Channel USB Audio Interface

Analog Mixers

Yamaha MG206 20-Input analog mixer

Yamaha MG10XUF 10-Input analog USB mixer

Loudspeakers

New QSC installation 2025 LCR+Sub

Main speakers Left, Center, Right
QSC K10.2

Subwoofer
QSC KS212C,  Dual 12-inch Cardioid Subwoofer

Monitors
3 x the box pro Mon A12, 350w

2 x Sidefill speakers, the box PA 108 A, 80w, fixed position

Also available

2 x Speakers, dB Technologies OPERA 515 DX, 400w
2 x Speakers, Yamaha MSR-400, 400w
2 x Subwoofers, dB Technologies SUB 05D, 800w

Wireless Mics

Handheld
2 x Sennheiser EW 100 G4-835-S B-Band
4 x Sennheiser XSw 35

Headset/Instrument
12 x Sennheiser EW-D, Headset/Instrument

A selection of condenser and dynamic microphones

Lights

Lighting console, Chamsys MagicQ PC Wing Compact+PC
6 x Front lights, De Sisti Leonardo 1kW fresnel, fixed position
10 x Marin Mac250 Wash, moving head, fixed position
4 x Marin Mac250 Entour, moving head, fixed position
5x Martin RUSH MH 6 Wash, moving head, fixed position

Selection fresnel, profile, par64, and another lights
Selection of RGB Led PAR lights
Hazer and Smoke

See list of DMX channels (Google Sheets)

Video

Motorized projection screen 5x5m

Optoma EH415
- Resolution 1920x1080
- HDMI, DisplayPort, VGA, S-video, Video
- Brightness: 4200 ANSI Lumens
- Contrast 12,000:1
- Throw Distance 1.2 m - 10 m
- Image Size 65 cm - 838 cm
- Throw Ratio 1.37:1 - 2.09:1 (D:W)

NEC M403HG DLP
- Resolution 1920x 1080
- 2x HDMI, VGA, Video
- Brightness: 4000 ANSI Lumens
- Contrast: 10,000:1
- Throw Distance 1.2 m - 7.6 m
- Image Size 76 cm - 760 cm
- Throw Ratio 1.2 - 2.04:1 (D:W)

Playback

Macbook Pro + QLab

Drumset

Pearl -Custom (by Mika Brush) -drumset

• Kick drum (20")
• Snare drum (14")
• Tom tom (10")
• Tom tom (12")
• Floor tom (14")
• Tama Iron Cobra HP200PTW pedal

• Hihat -Turkish moderate (14")
• Ride -Turkish moderate (20")
• Crash -Sabian (HHThinCrash) (16")
• Crash -Turkish (HHThinCrash) (16")
• Splash -Sabian B8X (12")
• Cowbell
